1. About Flexbox

Before flexbox was introduced into css, the various css properties for building layouts were rough and error-prone. And flexbox solves the problem by abstracting many properties. As the name suggests, flexbox means a flexible box model. Let's draw a picture: assuming you have a container and its child elements, it could look like this.

Flexbox containers have two axes, namely column (up/down) or row (left/right).

2. Practical operation

Let’s go straight to the code. This is a js module, not a css module. If we want to declare a style for rn, we need to define an object and then call StyleSheet.create() and finally throw it out of your module. But we need to note that rn only supports camel case naming.

import { Platform, StyleSheet, StatusBar } from 'react-native'
export default StyleSheet.create({
  container: {
    flex: 1,
    justifyContent: 'center',
    alignItems: 'center',
    backgroundColor: 'ghostwhite',
    ...Platform.select({
      ios: { paddingTop: 20 },
      android: { paddingTop: StatusBar.currentHeight },
    }),
  },
  box: {
    width: 100,
    height: 100,
    justifyContent: 'center',
    alignItems: 'center',
    backgroundColor: 'lightgray',
  },
  boxText: {
    color: 'darkslategray',
    fontWeight: 'bold',
  },
})

Then we saw that I just wrote this piece of code, which actually selects the style according to your mobile terminal.

...Platform.select({
  ios: { paddingTop: 20 },
  android: { paddingTop: StatusBar.currentHeight },
}),

ok, let’s take a look at how to use it in the rn component

import { Text, View } from 'react-native'
import styles from './styles'
export default function App() {
  return (
    <View style={styles.container}>
      <View style={styles.box}>
        <Text style={styles.boxText}>I'm in a box</Text>
      </View>
    </View>
  )
}

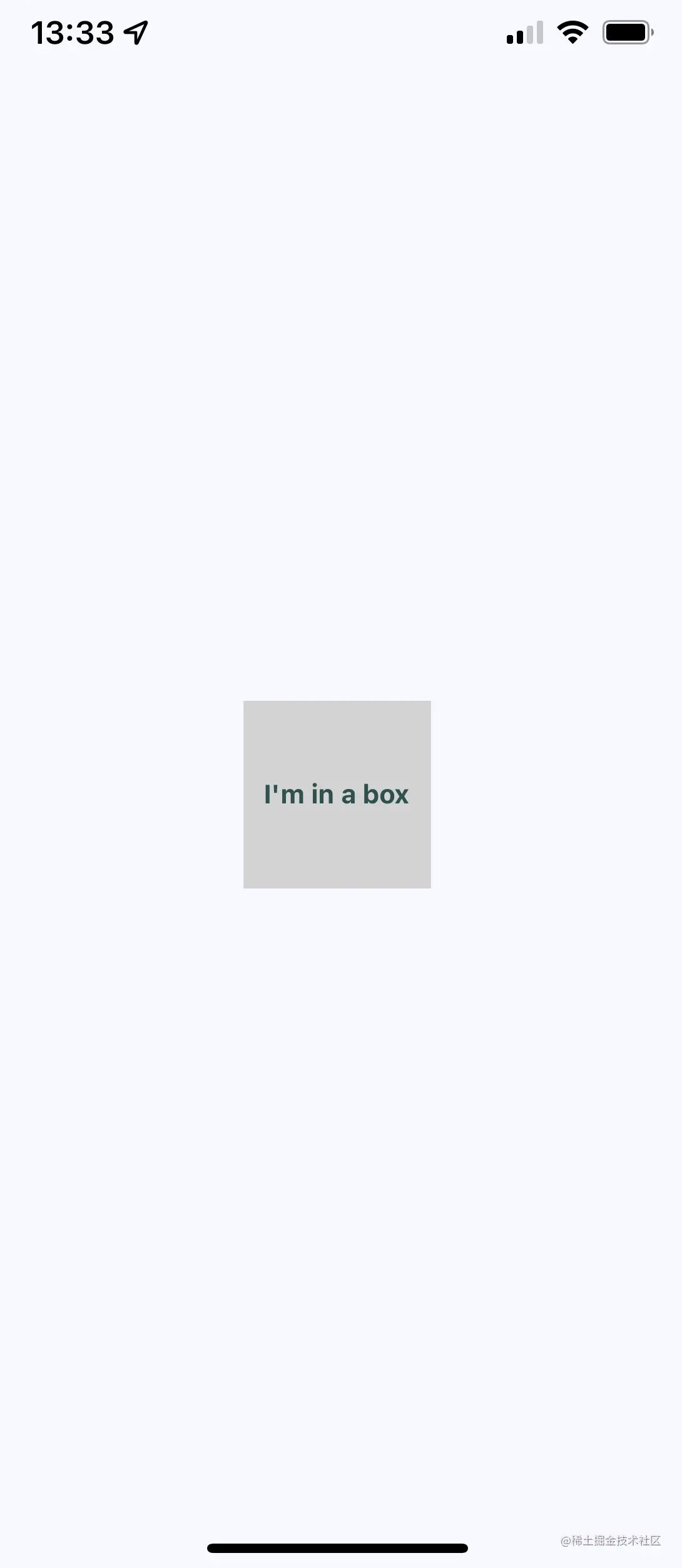

These styles will be assigned to each component via style properties. Let's see how it performs.

3. Use of Styled-components style component library

Styled-components is a css-in-js library that provides styles for our components. Let’s see how to use it directly. Of course, it’s just an introduction, we still use styleSheet.

First download the dependencies

yarn add styled-components

Then we write some code

import styled from "styled-components/native";
const Box = styled.View'
    width: 100px;
    height: 100px;
    justify-content: center;
    align-items: center;
    background-color: lightgray;
';
const BoxText = styled.Text'
    color: darkslategray;
    font-weight: bold;
';

Use

const App = () => {
return (
    <Box>
        <BoxText>I'm in a box</BoxText>
    </Box>
);

};

4. Basic Flexbox

Next, we will mainly talk about several common layouts in rn and the actual combat of flexbox

4.1. Three-column layout

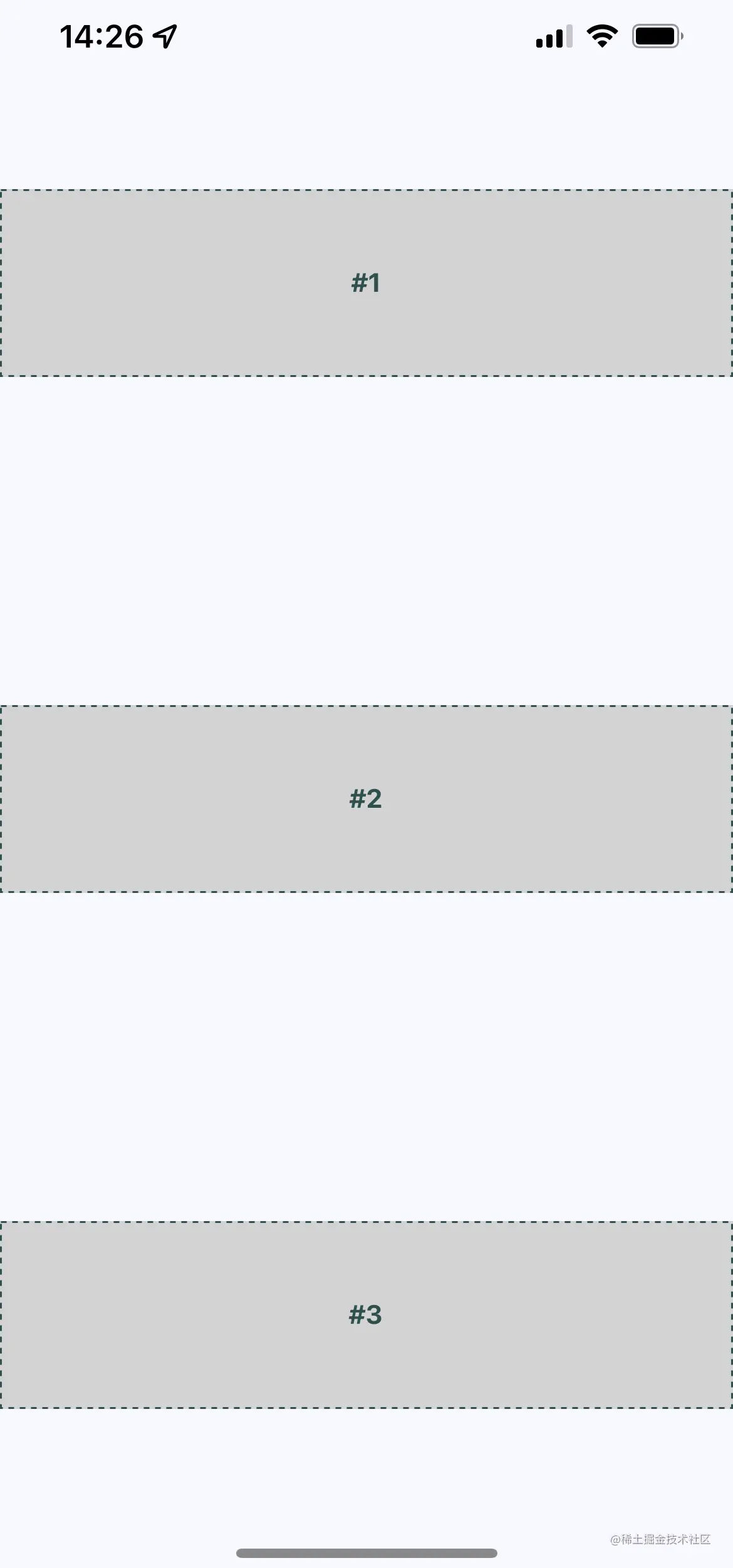

A common three-column layout from top to bottom.

‘

You can understand view as div and text as p.

import { Text, View } from 'react-native'
import styles from './styles'
export default function App() {
  return (
    <View style={styles.container}>
      <View style={styles.box}>
        <Text style={styles.boxText}>#1</Text>
      </View>
      <View style={styles.box}>
        <Text style={styles.boxText}>#2</Text>
      </View>
      <View style={styles.box}>
        <Text style={styles.boxText}>#3</Text>
      </View>
    </View>
  )
}

The flexDirection property determines the direction of the main axis, top to bottom or left to right, while the alignItem and justifyContent properties determine the arrangement and spacing of elements.

import { Platform, StyleSheet, StatusBar } from 'react-native'
export default StyleSheet.create({
  container: {
    flex: 1,
    flexDirection: 'column',
    alignItems: 'center',
    justifyContent: 'space-around',
    backgroundColor: 'ghostwhite',
    ...Platform.select({
      ios: { paddingTop: 20 },
      android: { paddingTop: StatusBar.currentHeight },
    }),
  },
  box: {
    width: 300,
    height: 100,
    justifyContent: 'center',
    alignItems: 'center',
    backgroundColor: 'lightgray',
    borderWidth: 1,
    borderStyle: 'dashed',
    borderColor: 'darkslategray',
  },
  boxText: {
    color: 'darkslategray',
    fontWeight: 'bold',
  },
})

And what if we want it to fill up the left and right sides? like this

We can add the attribute alignSelf, which means to change the width or height according to the direction of the main axis flexDirection (column changes the width, row changes the height) to fill the blanks and dynamically calculate the height or width. Like this it will fill the width of your screen.

  box: {
    height: 100,
    justifyContent: 'center',
    //
    alignSelf: 'stretch',
    alignItems: 'center',
    backgroundColor: 'lightgray',
    borderWidth: 1,
    borderStyle: 'dashed',
    borderColor: 'darkslategray',
  },

When we turn our cell phones sideways

Let's optimize it a little and just write the horizontal layout. The above style is too "abstract" to write.

import { Text, View, StatusBar } from 'react-native'
import styles from './styles'
import Box from './Box'
export default function App() {
 return (
   <View style={styles.container}>
     <Box>#1</Box>
     <Box>#2</Box>
   </View>
 )
}

import { PropTypes } from 'prop-types'
import { View, Text } from 'react-native'
import styles from './styles'
export default function Box({ children }) {
 return (
   <View style={styles.box}>
     <Text style={styles.boxText}>{children}</Text>
   </View>
 )
}
Box.propTypes = {
 children: PropTypes.node.isRequired,
}

This is a horizontal layout that stretches to the entire height of the screen.

import { Platform, StyleSheet, StatusBar } from 'react-native'
export default StyleSheet.create({
  container: {
    flex: 1,
    flexDirection: 'row',
    backgroundColor: 'ghostwhite',
    alignItems: 'center',
    justifyContent: 'space-around',
    ...Platform.select({
      ios: { paddingTop: 20 },
      android: { paddingTop: StatusBar.currentHeight },
    }),
  },
  box: {
    width: 100,
    justifyContent: 'center',
    alignSelf: 'stretch',
    alignItems: 'center',
    backgroundColor: 'lightgray',
    borderWidth: 1,
    borderStyle: 'dashed',
    borderColor: 'darkslategray',
  },
  boxText: {
    color: 'darkslategray',
    fontWeight: 'bold',
  },
})

Let's see how it performs

![image.png](https://ik.imagekit.io/leiakito/react%20Core%20scheduling%20principles/react-native-flexbox/1 b7f4a002d1045a882faf4b2a2ea521a~tplv-k3u1fbpfcp-zoom-in-crop-mark_1512_0_0_0.webp?updatedAt=1739875782894)

When we turn our cell phones sideways

![image.png](https://ik.imagekit.io/leiakito/react%20Core%20scheduling%20principles/react-native-flexbox/4 bf95f1a6db64d708edd014bbab07159~tplv-k3u1fbpfcp-zoom-in-crop-mark_1512_0_0_0.webp?updatedAt=1739875782855)

5. A slightly more complicated flexBox

Suppose we want to achieve such an effect, how should we achieve it?

![image.png](https://ik.imagekit.io/leiakito/react%20Core%20scheduling%20principles/react-native-flexbox/4 da8595a2c834d6ba5bdabc8e1dd8882~tplv-k3u1fbpfcp-zoom-in-crop-mark_1512_0_0_0.webp?updatedAt=1739875781677)

In our consciousness, the entire layout has rows and columns. Then we can also abstract the col and row components to represent the rows and columns respectively. Let’s jump right into the code.

You can see that we have determined the direction and arrangement of col and row respectively.

import { Platform, StyleSheet, StatusBar } from 'react-native'

export default StyleSheet.create({
  container: {
    flex: 1,
    flexDirection: 'column',
    backgroundColor: 'ghostwhite',
    alignItems: 'center',
    justifyContent: 'space-around',
    ...Platform.select({
      ios: { paddingTop: 40 },
      android: { paddingTop: StatusBar.currentHeight },
    }),
  },

  box: {
    height: 100,
    width: 100,
    justifyContent: 'center',
    alignItems: 'center',
    borderWidth: 1,
    borderStyle: 'dashed',
    borderColor: 'darkslategray',
    backgroundColor: 'lightgray',
  },

  boxText: {
    color: 'darkslategray',
    fontWeight: 'bold',
  },

  row: {
    flex: 1,
    flexDirection: 'row',
    justifyContent: 'space-around',
    alignSelf: 'stretch',
  },

  column: {
    flex: 1,
    flexDirection: 'column',
    alignItems: 'center',
    justifyContent: 'space-around',
    alignSelf: 'stretch',
  },
})

Components Section

app

import { View, StatusBar } from 'react-native'
import styles from './styles'
import Row from './Row'
import Col from './Col'
import Box from './Box'

export default function App() {
  return (
    <View style={styles.container}>
      <StatusBar hidden={false} />
      <Row>
        <Col>
          <Box>#1</Box>
          <Box>#2</Box>
        </Col>
        <Col>
          <Box>#3</Box>
          <Box>#4</Box>
        </Col>
      </Row>
      <Row>
        <Col>
          <Box>#5</Box>
          <Box>#6</Box>
        </Col>
        <Col>
          <Box>#7</Box>
          <Box>#8</Box>
        </Col>
      </Row>
      <Row>
        <Col>
          <Box>#9</Box>
          <Box>#10</Box>
        </Col>
        <Col>
          <Box>#11</Box>
          <Box>#12</Box>
        </Col>
      </Row>
    </View>
  )
}

col

import PropTypes from 'prop-types'
import { View } from 'react-native'
import styles from './styles'

export default function Column({ children }) {
  return <View style={styles.column}>{children}</View>
}

Column.propTypes = {
  children: PropTypes.node.isRequired,
}

row

import PropTypes from 'prop-types'
import { View } from 'react-native'
import styles from './styles'

export default function Row({ children }) {
  return <View style={styles.row}>{children}</View>
}

Row.propTypes = {
  children: PropTypes.node.isRequired,
}

box

import React from 'react'
import PropTypes from 'prop-types'
import { View, Text } from 'react-native'
import styles from './styles'

export default function Box({ children }) {
  return (
    <View style={styles.box}>
      <Text style={styles.boxText}>{children}</Text>
    </View>
  )
}

Box.propTypes = {
  children: PropTypes.node.isRequired,
}

6. Summary

In this section, we know the most common layout method in rn. Students need to practice more by themselves. It is relatively simple. If you have any questions, you can ask me. Join the study group to watch Boiling Point.
